Data Modeling (Entities)

Data modeling in Struktural involves defining EntityDefinition objects. These definitions dictate both the physical database tables (via EF Core) and the generated C# POCOs.

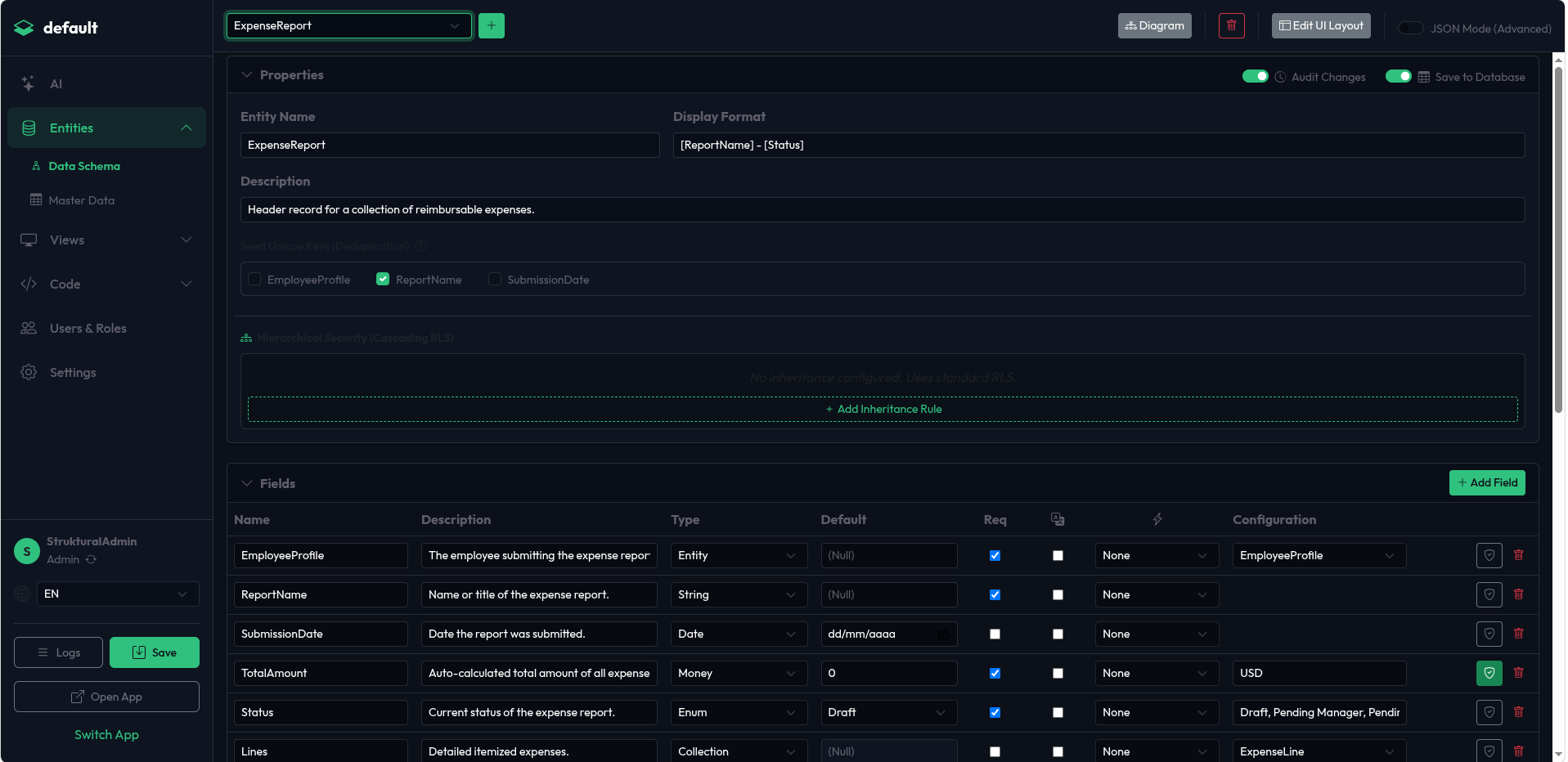

Modeling via the Studio UI

In the Data Schema module, you can add a new Entity by clicking "Add New Entity".

1. Entity Properties: In the right-hand properties pane, define the Name (strict PascalCase, e.g., CustomerInvoice). You can toggle Audit Changes (enables WORM tracking) or Save to Database (if unchecked, makes it a Virtual Entity in memory).
2. Fields: Click "Add Field" to define properties. You select the Type from a dropdown (String, Int, Decimal, Enum, Entity, Collection, Metadata, etc.).
3. Validation Rules: Click the Shield icon next to a field to open the Validation Panel. Here you can configure Min/Max values, String Length constraints, Regex patterns, or write Dynamic LINQ expressions for Conditional Requirements.
4. Relationships:
   • To create a Many-to-One relationship (Foreign Key), add a field of type Entity and select the target entity. Crucial: Name the field exactly as the concept (e.g., Customer). Do not append "Id"; the engine handles the physical CustomerId column automatically.
   • To create a One-to-Many relationship, add a field of type Collection on the parent entity, targeting the child entity.

The Generated JSON (app-schema.json)

When you save the schema, the Studio generates an array of EntityDefinition objects.

{
  "Entities": [
    {
      "Name": "Project",
      "Description": "Manages client projects.",
      "IsVirtual": false,
      "IsAudited": true,
      "DisplayFormat": "[Code] - [Name]",
      "Fields": [
        {
          "Name": "Code",
          "Type": "String",
          "IsRequired": true,
          "Validation": { "MaxLength": "20" }
        },
        {
          "Name": "Name",
          "Type": "String",
          "IsRequired": true
        },
        {
          "Name": "Client",
          "Type": "Entity",
          "IsRequired": true,
          "Relation": {
            "Entity": "Customer",
            "OnDelete": "Restrict"
          }
        },
        {
          "Name": "Tasks",
          "Type": "Collection",
          "IsRequired": false,
          "Relation": {
            "Entity": "ProjectTask"
          }
        }
      ]
    }
  ]
}

Advanced Field Types

Confidential Data (Encryption)

If you select ApplicationWideSecureString or UserSecureString in the Studio, the field is treated as highly sensitive.

• JSON Impact: "Type": "ApplicationWideSecureString".
• Behavior: The database column uses a standard text type, but the Entity Framework layer transparently encrypts the data using AES-256 before insertion and decrypts it upon read.

Dynamic Attributes (EAV Metadata)

If your domain requires users to define custom properties at runtime (e.g., a "Product Specs" dictionary where different products have different attributes like "Weight", "Voltage", "Color"), select the Metadata type.

• JSON Impact: "Type": "Metadata".
• Behavior: The engine creates an Entity-Attribute-Value (EAV) shadow table named {EntityName}_Metadata. In the API, this field expects a JSON array of objects: [{"AttributeName": "Color", "StringValue": "Red"}].

File and Image Handling

When you need to store documents or pictures, use the File, SecureFile, Image, or Audio types.

• JSON Impact: "Type": "Image".
• Behavior: Do not create a relationship to the system file table manually. By declaring the type as Image, the engine automatically establishes a Foreign Key to Struktural_Sys_File and instructs the frontend to render upload dropzones instead of standard text inputs.
